Understanding Istio and TCP services

By using a real use-case scenario, we explore how Istio routes TCP traffic and how to get past some common pitfalls we’ve encountered firsthand.

Overview

I lately came across an Istio setup where both the downstream (client) and the upstream (server) were using the same sets of ports:

1. port 8080 for HTTP protocol
2. port 5701 for Hazelcast protocol, a Java based memory database embedded in the pod’s workload, using TCP

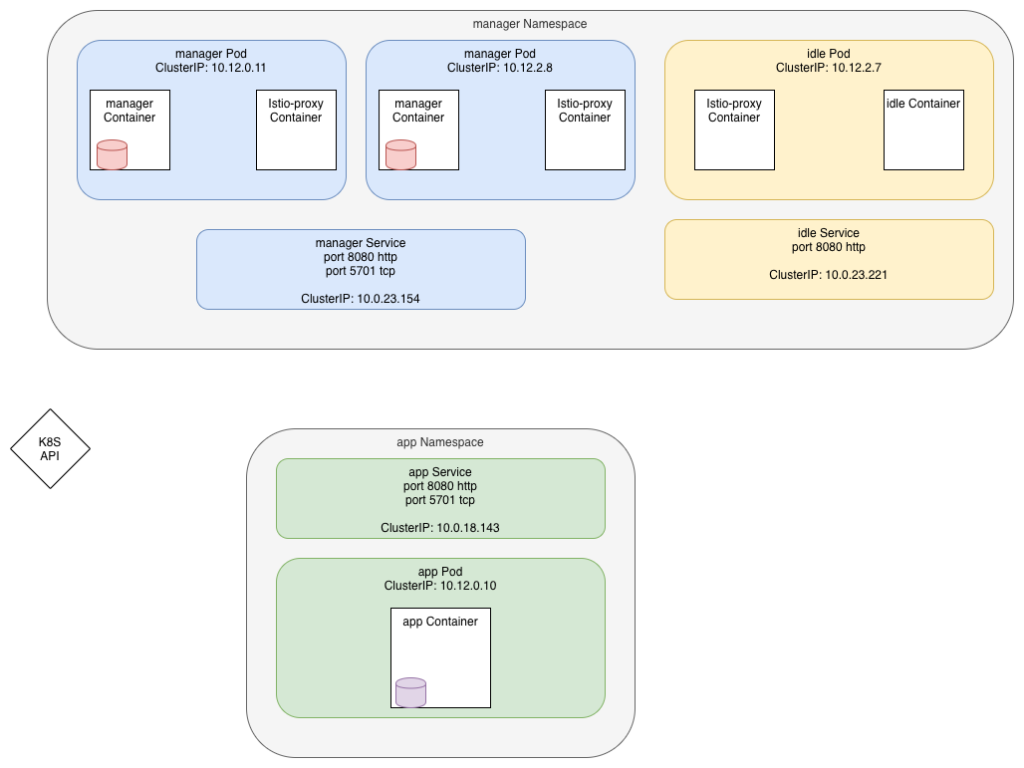

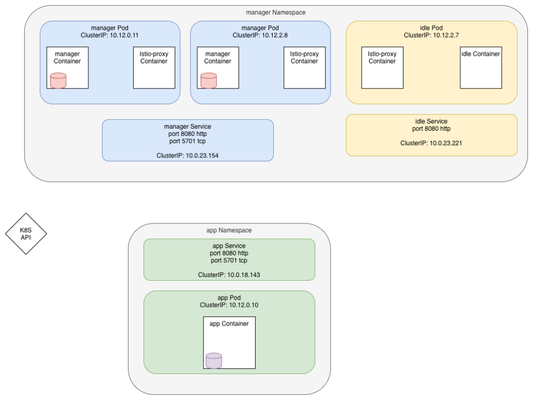

The setup is presented here:

×

In theory, two types of communication happen:

• Each Hazelcast database (the red and purple cylinders) talks to each other on port 5701 using TCP protocol. Cluster is discovered using the Hazelcast Kubernetes plugin, which is set to calls the API to get the Pod IPs. Then connections are made at TCP level using the IP:port of the pod
• The manager calls the app on the HTTP port 8080

We’re going to focus on the first connection for now, specifically the one happening between the manager pods as they are going through the Istio Proxy.

Let’s first leverage the istioctl CLI to get the configuration of the listeners on one of the pods:

istioctl pc listeners manager-c844dbb5f-ng5d5.manager --port 5701

ADDRESS           PORT       TYPE
10.12.0.11        5701       TCP
10.0.23.154       5701       TCP
10.0.18.143       5701       TCP

We have 3 entries for port 5701. They are all of type TCP which is what we defined.

We clearly see we have one entry for our local IP (10.12.0.11) and one for each service using the 5701 port, the manager (10.0.23.154) and the app services (10.0.18.143).

Inbound connections

The first entry, for address 10.12.0.11, is an INBOUND listener that is used when connections enter into the Pod. As we are on a TCP service, it does not have a route, but directly points to a cluster, inbound|5701|tcp-hazelcast|manager.manager.svc.cluster.local

If we check all clusters on port 5701 we have:

istioctl pc clusters manager-7948dffbdd-p44xx.manager --port 5701

SERVICE FQDN                                      PORT     SUBSET                 DIRECTION        TYPE
app.app.svc.cluster.local                         5701       -                    outbound         EDS
manager.manager.svc.cluster.local                 5701       -                    outbound         EDS
manager.manager.svc.cluster.local                 5701     tcp-hazelcast          inbound          STATIC

The last one is our INBOUND. Let’s check it:

istioctl pc clusters manager-7948dffbdd-p44xx.manager --port 5701 --direction inbound -o json

[
    {
        "name": "inbound|5701|tcp-hazelcast|manager.manager.svc.cluster.local",
        "type": "STATIC",
        "connectTimeout": "1s",
        "loadAssignment": {
            "clusterName": "inbound|5701|tcp-hazelcast|manager.manager.svc.cluster.local",
            "endpoints": [
                {
                    "lbEndpoints": [
                        {
                            "endpoint": {
                                "address": {
                                    "socketAddress": {
                                        "address": "127.0.0.1",
                                        "portValue": 5701
                                    }
                                }
                            }
                        }
                    ]
                }
            ]
        },
        "circuitBreakers": {
            "thresholds": [
                {
                    "maxConnections": 4294967295,
                    "maxPendingRequests": 4294967295,
                    "maxRequests": 4294967295,
                    "maxRetries": 4294967295
                }
            ]
        }
    }
]

This can’t be simpler… check the lbEndpoints definition: it just forwards the connection to the localhost (127.0.0.1) port 5701, our app.

Outbound connections

Outbound connections are originating from inside the pod to reach external resources.

From what we saw above, we have two known endpoints that defined the port 5701: manager.manager service and app.app service.

Let’s check the content of the manager one:

istioctl pc listeners manager-7948dffbdd-p44xx.manager --port 5701 --address 10.0.23.154 -o json

[
    {
        "name": "10.0.23.154_5701",
        "address": {
            "socketAddress": {
                "address": "10.0.23.154",
                "portValue": 5701
            }
        },
        "filterChains": [
            {
                "filters": [
                    {
                        "name": "envoy.tcp_proxy",
                        "typedConfig": {
                            "[@type](https://twitter.com/type)": "type.googleapis.com/envoy.config.filter.network.tcp_proxy.v2.TcpProxy",
                            "statPrefix": "outbound|5701||manager.manager.svc.cluster.local",
                            "cluster": "outbound|5701||manager.manager.svc.cluster.local",
                            "accessLog": [
...
                            ]
                        }
                    }
                ]
            }
        ],
        "deprecatedV1": {
            "bindToPort": false
        },
        "trafficDirection": "OUTBOUND"
    }
]

Then we have a filterChain and an envoy.tcp.proxy filter.

Here again, the proxy points us to cluster named outbound|5701||manager.manager.svc.cluster.local.

Envoy is not using any route as we are using the TCP protocol and we have nothing besides IP and port to base the routing on anyways.

Let’s see inside the cluster:

istioctl pc clusters manager-7948dffbdd-p44xx.manager --port 5701 --fqdn manager.manager.svc.cluster.local --direction outbound -o json

[
    {
        "transportSocketMatches": [
            {
                "name": "tlsMode-istio",
                "match": {
                    "tlsMode": "istio"
                },
...
                }
            },
            {
                "name": "tlsMode-disabled",
                "match": {},
                "transportSocket": {
                    "name": "envoy.transport_sockets.raw_buffer"
                }
            }
        ],
        "name": "outbound|5701||manager.manager.svc.cluster.local",
        "type": "EDS",
        "edsClusterConfig": {
            "edsConfig": {
                "ads": {}
            },
            "serviceName": "outbound|5701||manager.manager.svc.cluster.local"
        },
        "connectTimeout": "1s",
        "circuitBreakers": {
...
        },
        "filters": [
...
        ]
    }
]

I also removed some parts here to focus on the important stuff:

• First two blocks in transportSocketMatches: Envoy will check if it can do SSL (TLS) and set the certificate if so. Else, use plain TCP.
• Then find the destination’s pod using the EDS protocol. This stands for Endpoint Discovery Service.
• Envoy will look up its list of endpoints for the service named outbound|5701||manager.manager.svc.cluster.local
• These endpoints are selected based on the Kubernetes service endpoint list (kubectl get endpoints -n manager manager).

We can also check the list of endpoints configured in Istio:

istioctl pc endpoints manager-7948dffbdd-p44xx.manager --cluster "outbound|5701||manager.manager.svc.cluster.local"

ENDPOINT            STATUS          OUTLIER CHECK          CLUSTER
10.12.0.12:5701     HEALTHY              OK                outbound|5701||manager.manager.svc.cluster.local
10.12.1.6:5701      HEALTHY              OK                outbound|5701||manager.manager.svc.cluster.local

All this sounds pretty good so far.

Testing the setup

To demonstrate the whole thing, let’s connect to one of the manager’s pod and call the service on port 5701:

k -n manager exec -ti manager-7948dffbdd-p44xx -c manager sh

telnet manager.manager 5701

You should get the following answer after pushing the enter key some times:

Connected to manager.manager

Connection closed by foreign host

The server we are using is in fact an HTTPS web server, expecting a TLS handshake… but whatever, we just want to connect to a TCP port here.

Repeat this command multiple times.

Let’s look at the logs from the Istio-Proxy sidecars. I’m using Stern here, which is a tool to dump logs from K8s in a simple and elegant way. Use kubectl logs if you don’t have it (but you seriously should):

stern -n manager manager -c istio-proxy

manager-7948dffbdd-p44xx istio-proxy [2020-07-23T14:26:27.081Z] "- - -" 0 - "-" "-" 6 0 506 - "-" "-" "-" "-" "10.12.0.11:5701" outbound|5701||manager.manager.svc.cluster.local 10.12.0.11:51100 10.0.23.154:5701 10.12.0.11:47316 - -
manager-7948dffbdd-p44xx istio-proxy [2020-07-23T14:26:27.081Z] "- - -" 0 - "-" "-" 6 0 506 - "-" "-" "-" "-" "127.0.0.1:5701" inbound|5701|tcp-hazelcast|manager.manager.svc.cluster.local 127.0.0.1:59430 10.12.0.11:5701 10.12.0.11:51100 outbound_.5701_._.manager.manager.svc.cluster.local -

manager-7948dffbdd-p44xx istio-proxy [2020-07-23T14:26:08.632Z] "- - -" 0 - "-" "-" 6 0 521 - "-" "-" "-" "-" "10.12.1.6:5701" outbound|5701||manager.manager.svc.cluster.local 10.12.0.11:49150 10.0.23.154:5701 10.12.0.11:47258 - -
manager-7948dffbdd-sh7rx istio-proxy [2020-07-23T14:26:08.634Z] "- - -" 0 - "-" "-" 6 0 519 - "-" "-" "-" "-" "127.0.0.1:5701" inbound|5701|tcp-hazelcast|manager.manager.svc.cluster.local 127.0.0.1:57844 10.12.2.8:5701 10.12.0.11:49150 outbound_.5701_._.manager.manager.svc.cluster.local -

I grouped the requests by two, and I have two different pair:

1. an Outbound connection to manager.manager.svc
2. an inbound connection to ourselves
3. an Outbound connection to manager.manager.svc
4. an inbound connection on the second manager’s Pod (10.12.2.8:5701)

Of course, Istio is using the round-robin load-balancing algo by default, so it totally explain what is going on here. Each consecutive request go to a different pod.

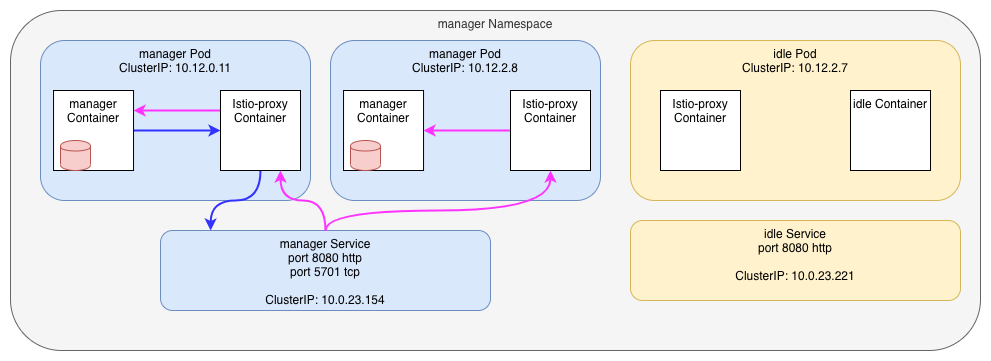

Here, the blue link is outbound while pink is inbound

×

OK, this is not really what’s going on! I tricked you!!

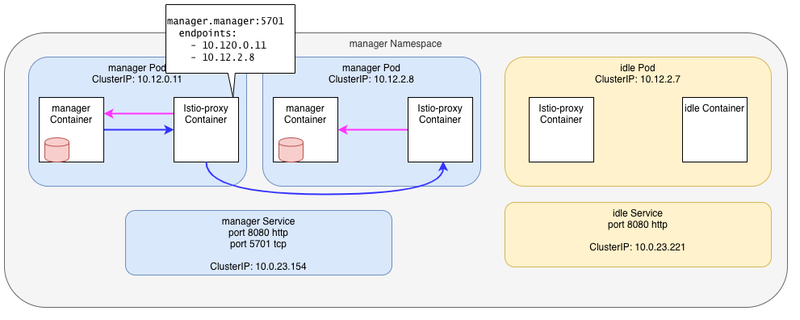

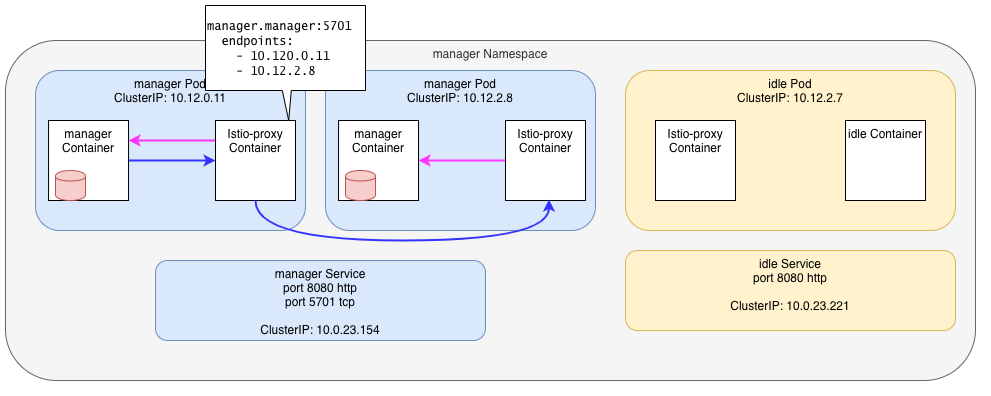

Istio (Envoy) does NOT send traffic to the Kubernetes Service. Services are used by Istiod (Pilot) to build the mesh topology, then the informations is sent to each Istio-proxy, which then send traffic to the Pods. It finally look more like that:

×

But that’s not how Hazelcast server works either!

Hazelcast cluster communication

The truth is, Hazelcast does no use the service name for its communications.

In fact, it leverage the Kubernetes API (or a Headless service) to learn about all the pods in the cluster. It’s unclear to me if it’s then using the Pod’s FQDN or its IP. In fact, it does not matter to us.

As with every application using a “smart” client, like Kafka, each instance needs to talk directly to each of the other instances that are part of the cluster.

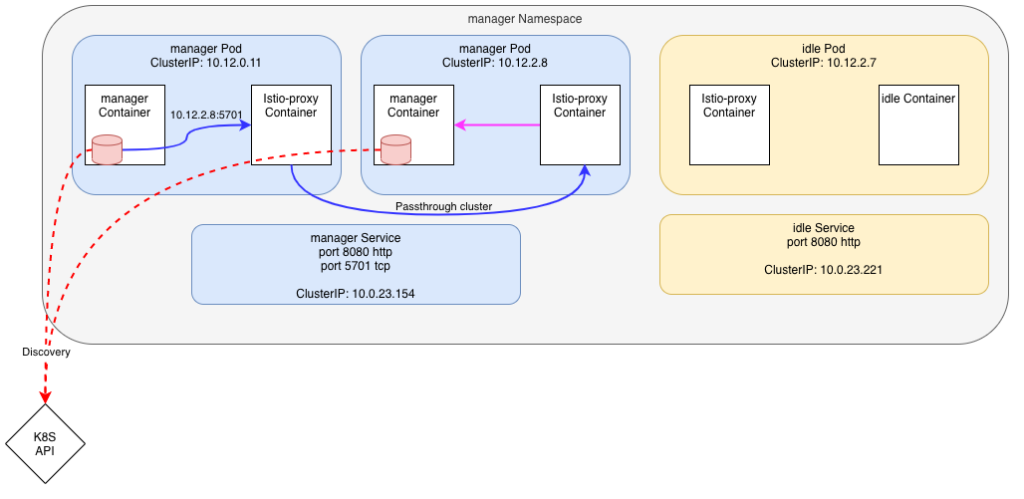

So, what’s happening if we try to call the second manager’s Pod using its IP:

manager-7948dffbdd-p44xx istio-proxy [2020-07-23T14:39:12.587Z] "- - -" 0 - "-" "-" 6 0 2108 - "-" "-" "-" "-" "10.12.2.8:5701" PassthroughCluster 10.12.0.11:51428 10.12.2.8:5701 10.12.0.11:51426 - -
manager-7948dffbdd-sh7rx istio-proxy [2020-07-23T14:39:13.590Z] "- - -" 0 - "-" "-" 6 0 1113 - "-" "-" "-" "-" "127.0.0.1:5701" inbound|5701|tcp-hazelcast|manager.manager.svc.cluster.local 127.0.0.1:59986 10.12.2.8:5701 10.12.0.11:51428 - -'

1. the outbound connection is using the Passthrough cluster as the destination IP is not known inside the mesh
2. the upstream connection uses the inbound cluster, same as before

×

This is not ideal, but at least it’s working

Things can go bad

Later on I was called as something strange was going on in the cluster.

At some point, when the manager application tried to connect to the Hazelcast port, the connection was routed to the idle pod in the manager Namespace.

How possible? This idle Pod/Service doesn’t even expose the port 5701 !

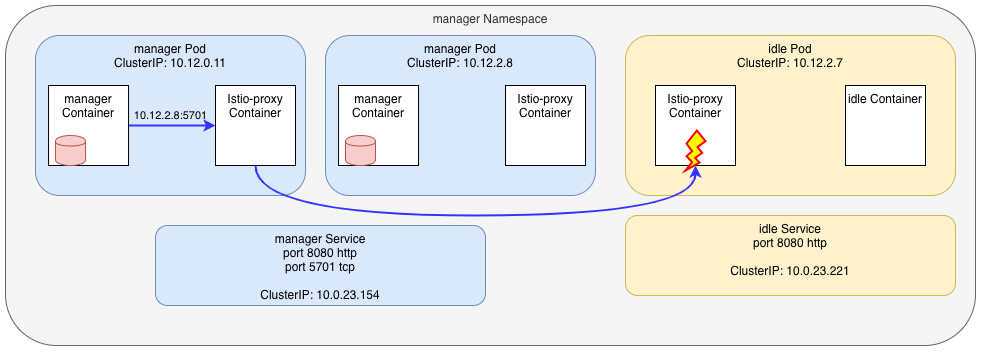

Here’s an overview:

×

Nothing changed in the manager Namespace, but looking at the Services inside the app Namespace, I saw that an ExternalName Service was added:

kubectl get svc -n app

NAME         TYPE              CLUSTER-IP       EXTERNAL-IP                       PORT(S)                  AGE
app          ClusterIP         10.0.18.143                                        8080/TCP,5701/TCP        18h
app-ext      ExternalName                       idle.manager.svc.cluster.local    8080/TCP,5701/TCP        117s

An ExternalName service type is one that, instead of defining an internal load-balancer that holds the list of the active target pods, is only a CNAME to another Service.

Here’s its definition:

apiVersion: v1
kind: Service
metadata:
    labels:
        app/name: app
    name: app-ext
    namespace: app
spec:
    ports:
    - name: http-app
      port: 8080
      protocol: TCP
      targetPort: 8080
    - name: tcp-hazelcast
      port: 5701
      protocol: TCP
      targetPort: 5701
    externalName: idle.manager.svc.cluster.local
    sessionAffinity: None
    type: ExternalName

This Service definition makes the name app-ext.app.svc.cluster.local resolve to idle.manager.svc.cluster.local (well, CNAME, then resolve to the IP of the service, 10.0.23.221)

Let’s look again at our Listeners on the manager pod:

istioctl pc listeners manager-7948dffbdd-p44xx.manager --port 5701

ADDRESS         PORT     TYPE
10.12.0.12      5701     TCP
10.0.18.143     5701     TCP
10.0.23.154     5701     TCP
0.0.0.0         5701     TCP

We now have a new 0.0.0.0 entry !

Let’s look at the config:

istioctl pc listeners manager-7948dffbdd-p44xx.manager --port 5701 --address 0.0.0.0 -o json

[
    {
        "name": "0.0.0.0_5701",
        "address": {
            "socketAddress": {
                "address": "0.0.0.0",
                "portValue": 5701
            }
        },
        "filterChains": [
            {
                "filterChainMatch": {
                    "prefixRanges": [
                        {
                            "addressPrefix": "10.12.0.11",
                            "prefixLen": 32
                        }
                    ]
                },
                "filters": [
                    {
                        "name": "envoy.filters.network.wasm",
...
                    },
                    {
                        "name": "envoy.tcp_proxy",
                        "typedConfig": {
                            "[@type](https://twitter.com/type)": "type.googleapis.com/envoy.config.filter.network.tcp_proxy.v2.TcpProxy",
                            "statPrefix": "BlackHoleCluster",
                            "cluster": "BlackHoleCluster"
                        }
                    }
                ]
            },
            {
                "filters": [
                    {
                        "name": "envoy.filters.network.wasm",
...
                    },
                    {
                        "name": "envoy.tcp_proxy",
                        "typedConfig": {
                            "[@type](https://twitter.com/type)": "type.googleapis.com/envoy.config.filter.network.tcp_proxy.v2.TcpProxy",
                            "statPrefix": "outbound|5701||app-ext.app.svc.cluster.local",
                            "cluster": "outbound|5701||app-ext.app.svc.cluster.local",
                            "accessLog": [
...
                            ]
                        }
                    }
                ]
            }
        ],
        "deprecatedV1": {
            "bindToPort": false
        },
        "trafficDirection": "OUTBOUND"
    }
]

Suddenly it’s a little more complicated.

1. First, we accept any destination IP for port 5701
2. Then we enter the filterChains
3. If the real destinations is ourselves (the pod IP, 10.12.0.11), drop the request (send it to the BlackHoleCluster)
4. Else use cluster outbound|5701||app-ext.app.svc.cluster.local to find the forwarding address

Let’s check this cluster:

istioctl pc clusters manager-7948dffbdd-p44xx.manager  --fqdn app-ext.app.svc.cluster.local --port 5701 -o json

[
    {
        "name": "outbound|5701||app-ext.app.svc.cluster.local",
        "type": "STRICT_DNS",
        "connectTimeout": "1s",
        "loadAssignment": {
            "clusterName": "outbound|5701||app-ext.app.svc.cluster.local",
            "endpoints": [
                {
                    "locality": {},
                    "lbEndpoints": [
                        {
                            "endpoint": {
                                "address": {
                                    "socketAddress": {
                                        "address": "idle.manager.svc.cluster.local",
                                        "portValue": 5701
                                    }
                                }
                            },

Once again, this cluster is pretty simple, it just forwards the traffic to the server idle.manager.svc.cluster.local using the DNS to get the real destination’s IP.

Let’s do a telnet again to the second manager’s Pod and check the logs:

manager-7948dffbdd-p44xx istio-proxy [2020-07-23T14:47:24.040Z] "- - -" 0 UF,URX "-" "-" 0 0 1000 - "-" "-" "-" "-" "10.0.23.221:5701" outbound|5701||app-ext.app.svc.cluster.local - 10.12.1.6:5701 10.12.0.12:52852 - -

1. Request is returning an error: 0 UF,URXFrom the Envoy doc, UF is Upstream connection failure and URX is maximum connect attempts (TCP) was reached. This is perfectly normal as the idle Service does not expose the port 5701 (nor the Pod binds it)
2. Request was forwarded to outbound|5701||app-ext.app.svc.cluster.local cluster

×

Wait, WHAAAAT?

A Service created in another Namespace (app) just broke our Hazelcast cluster?

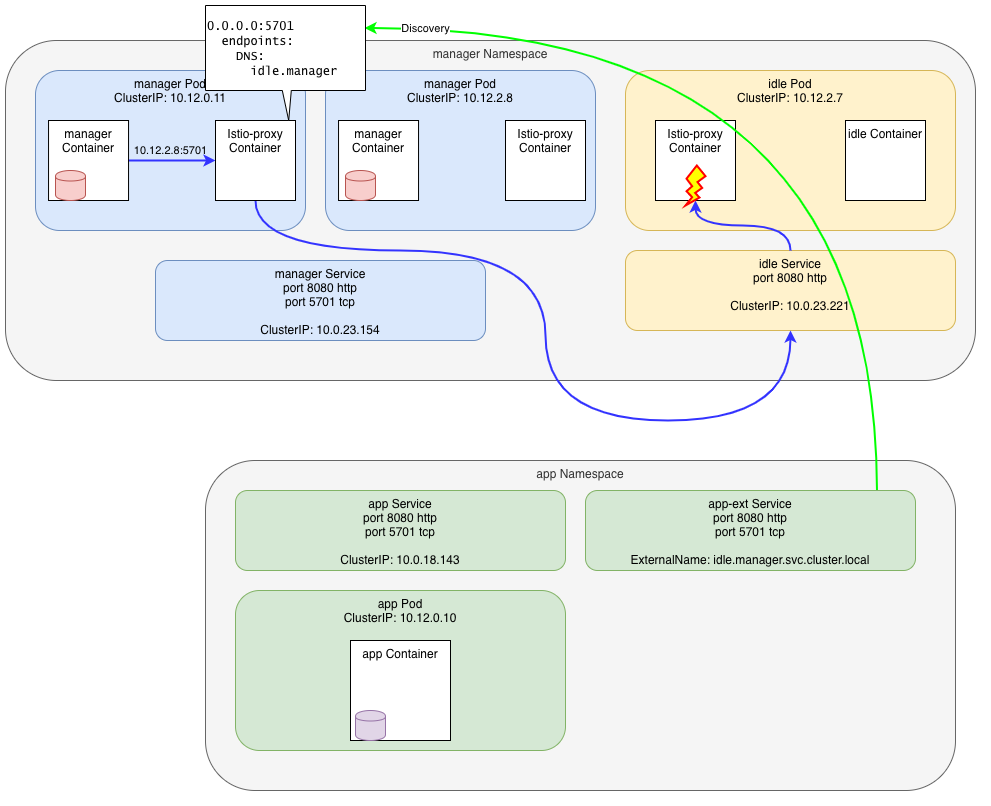

The explanation is easy here… before this service was created, the real Pod’s IP was unknown in the mesh and Envoy was using the Passthrough cluster to send the request directly to it. Now, the IP is still unknown but is matched by the catchall 0.0.0.0:5710 Listener and forwarded to a known Cluster, outbound|5701||app-ext.app.svc.cluster.local, which is pointing to the idle Service.

Solving the issue

What can we do to recover our Hazelcast cluster?

No 5701 port

One of the solutions would be to NOT expose the port 5701 in the ExternalName Service. Then, no 0.0.0.0:5701 Listener, and traffic will flow through the Passthrough Cluster. Not ideal to track our Mesh traffic, but working fine.

No ExternalName

Another one would be to not use ExternalName at all…

The Externalname was in fact a new service that was added in certain circumstances where we want all the calls going to the app service to be forwarded to the idle.manager service.

Besides the fact that broke our Hazelcast cluster, it also means that we had to delete a service then re-create it as an ExternalName type. Both actions forced Istiod (Pilot) to re-build the complete mesh config and update all the proxies in the Mesh, including a change in the Listeners that caused a drain of all opened connexions, twice!

This is one of the worst patterns you can have when using a Service Mesh.

One possible pattern would be to add a VirtualService definition for the app application that will send traffic to the idle.manager Service only when we need it. This would not create or delete any Listener and will only update the routes of the app HTTP Service.

apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
    name: app-idle
spec:
    hosts:
    - app.app.svc.cluster.local
    http:
    - name: to-idle
    route:
    - destination:
        host: idle.manager.svc.cluster.local
        port:
            number: 8080

This is saying that all traffic for Service app.app.svc.cluster.local must be sent to idle.manager.svc.cluster.local:8080.

When we want the traffic to effectively go to the app application, just update the VirtualService and set the destination to app.app.svc.cluster.local, or delete it.

Sidecars

With recent Istio, we can also leverage the use of Sidecar resources to limit what the manager Pod can see inside the Mesh.

Specifically in this case, we could use an annotation on the ExternalName Service to only make it visible in the app Namespace:

apiVersion: v1
kind: Service
metadata:
  labels:
    app/name: app
  annotations:
    networking.istio.io/exportTo: "."
  name: app-ext
  namespace: app
spec:
  ports:
  - name: http-app
    port: 8080
    protocol: TCP
    targetPort: 8080
  - name: tcp-hazelcast
    port: 5701
    protocol: TCP
    targetPort: 5701
  externalName: idle.manager.svc.cluster.local
  sessionAffinity: None
  type: ExternalName

By adding the annotation networking.istio.io/exportTo: “.”, which means “only export this resource to the namespace it’s published in,” the service is not seen by the manager‘s Pods, nor by any pod outside of the app Namespace: No more 0.0.0.0:5701:

istioctl pc listeners manager-7948dffbdd-p44xx.manager --port 5701

ADDRESS           PORT          TYPE
10.0.18.143       5701          TCP
10.12.0.12        5701          TCP
10.0.25.229       5701          TCP

Different TCP ports

If we’re willing to update our application, there are a few other solutions we could use as well.

We could use different ports for different TCP services. This is the hardest to put in place when you’re already dealing with complex applications like databases, but it’s been the only option available in Istio for a long time.

We could also update our applications to use TLS and populate the Server Name Indication (SNI). Envoy/Istio can use SNI to route traffic for TCP services on the same port because Istio treats the SNI for routing TLS/TCP traffic just like it treats the Host header for HTTP traffic.

Conclusion

First I want to note that no Hazelcast clusters were damaged during this demo. The problem here is not linked to Hazelcast at all and can happen with any set of services using the same ports.

Istio and Envoy have very limited ways to play with TCP or unknown protocols. When the only thing you have to inspect is the IP and the port, there’s not much you can do.

Always keep in mind the best practices to configure your clusters:

• Try to avoid using the same port number for different TCP services where you can
• Always prefix the protocol inside port names (`tcp-hazelcast`, `http-frontend`, `grpc-backend`) – see protocol selection docs
• Add Sidecar resources as early as possible to restrict the sprawl of configuration, and set the default exportTo to namespace local in your Istio installation
• Configure your applications to communicate by names (FQDN), not IPs
• Always configure FQDN (including `svc.cluster.local`) in Istio Resources
